LAMPU PENERANGAN JALAN UMUM AIO
*GAMBAR DAN SPESIFIKASI LAMPU PJU BISA BERUBAH-UBAH TANPA PEMBERITAHUAN SESUAI DENGAN PRODUKSI PABRIK
ALL IN ONE (AIO) 60 WATT NON TKDN
LED Chip: 3030LED 192PCS
Color Temperature: 6000K
Solar Panel: 6V-50W, Polycrystalline
Battery Type: LiFePO4 3.2V, 72AH
Charging Time: 6-8 hours
Discharging Time: 14 hours
LED: 200 lm/w
Material: Aluminum
Product Size: 100037050mm
Install Height: 10-12m
Warranty: 1 Year
ALL IN ONE (AIO) 80 WATT NON TKDN
LED Chip: 3030LED 192PCS
Color Temperature: 6000K
Solar Panel: 6V-50W, Polycrystalline
Battery Type: LiFePO4 3.2V, 72AH
Charging Time: 6-8 hours
Discharging Time: 14 hours
LED: 200 lm/w
Material: Aluminum
Product Size: 100037050mm
Install Height: 10-12m
Warranty: 1 Year
ALL IN ONE (AIO) 100 WATT NON TKDN
LED Chip: 3030LED 192PCS
Color Temperature: 6000K
Solar Panel: 6V-50W, Polycrystalline
Battery Type: LiFePO4 3.2V, 72AH
Charging Time: 6-8 hours
Discharging Time: 14 hours
LED: 200 lm/w
Material: Aluminum
Product Size: 100037050mm
Install Height: 10-12m
Warranty: 1 Year

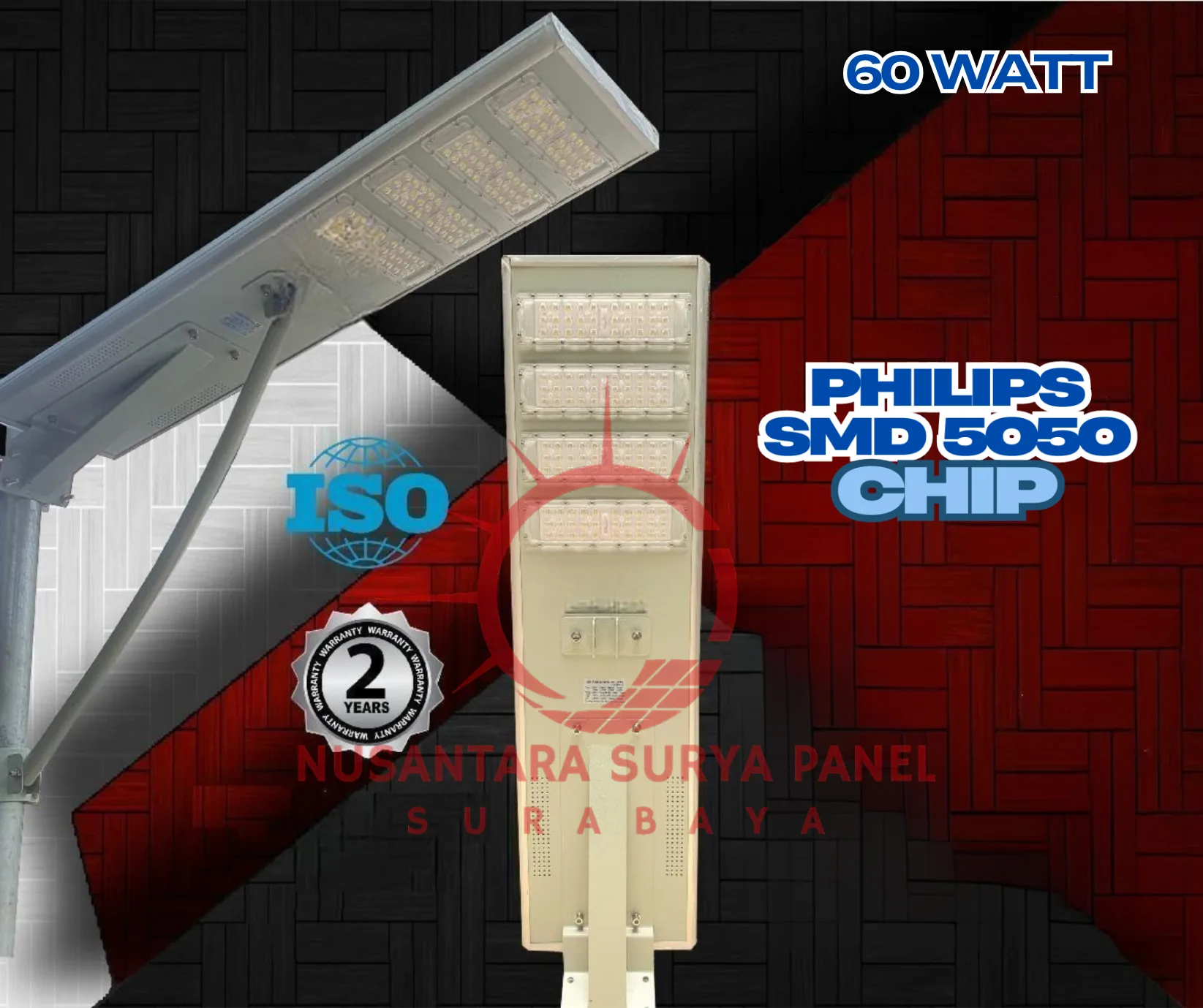

ALL IN ONE 60WATT
INTEGRATED SOLAR STREET LIGHT
LED POWER: 60 WATT DC
LED CHIP: PHILIPS SMD5050
LED EFFICIENCY: 210 - 245 LM/W
CCT: 6000K - 6500K
LIFETIME: 50.000 HOURS
SOLAR PANEL
POWER: 20V 70W
TYPE: MONOCRYSTALLINE
LIFETIME: >20 YEARS
BATTERY TYPE: LiFePO4
CYCLE: >2000
CAPACITY: 460.8WH 12.8V
LIFETIME: 5 - 6 YEARS
CONTROLLER TYPE: MPPT FAST CHARGING
SYSTEM MODE: DIMMING
DISCHARGING: >24 HOURS
CHARGING TIME BY SUN: 3 - 6 HOURS
MOUNTING HEIGHT: 20 - 25 METERS
SPACE BETWEEN LIGHT: 6 - 8 METERS
MATERIAL & RATE: ALUMINUM & IP66
SIZE CASING: 1080 × 300 × 45 MM
ISO
WARRANTY: 2 YEARS
ALL IN ONE (AIO) 60 WATT BIFACIAL TSN A60 SERIES TKDN
Power: 60W
Type CHIPLED: SMD5050
Number of LED: 60 pcs
Number of Modul LED: 2 Modul
Lensa: Batwing Widebeam
CCT: 5.700 - 6.500 Kelvin
Lumen: 180-200 LM/W
Lifetime ChipLED: 100.000 Hours
Solar Panel
Max Power: 2 × 80 W
Type Solar Cell: Bifacial Monocrystalline
Lifetime Solar Cell: 20 Tahun
Lifepo4 Battery 12.8V 40Ah
Capacity (Wh): 512 WH
Lifetime Battery: 2.000 Cycle
Smart Solar Charger Controller
Controller: Smart Controller MPPT with Sensor Solar and Time Dimming Mode
Lamp Material: Aluminum
Charging Time: 6-8 hours of effectively sun light
Working Time: Light 8-12 hours every day
IP Rate: IP65
Warranty: 3 years
Fitur Tambahan
Double-sided Solar Panel: Panel 1 dan Panel 2
Bifacial solar panel, meningkatkan efisiensi hingga 20%
Anti-corrosion aluminium shell
Modular design: mudah mengganti baterai
Angle Adjustable: Lampu dapat diatur kemiringannya
Indikator lampu baterai untuk memantau status
Distribusi cahaya yang optimal untuk jarak jauh
Garansi 3 tahun semua produk
Sudah ada ISO 9001:2015, SNI, TKDN

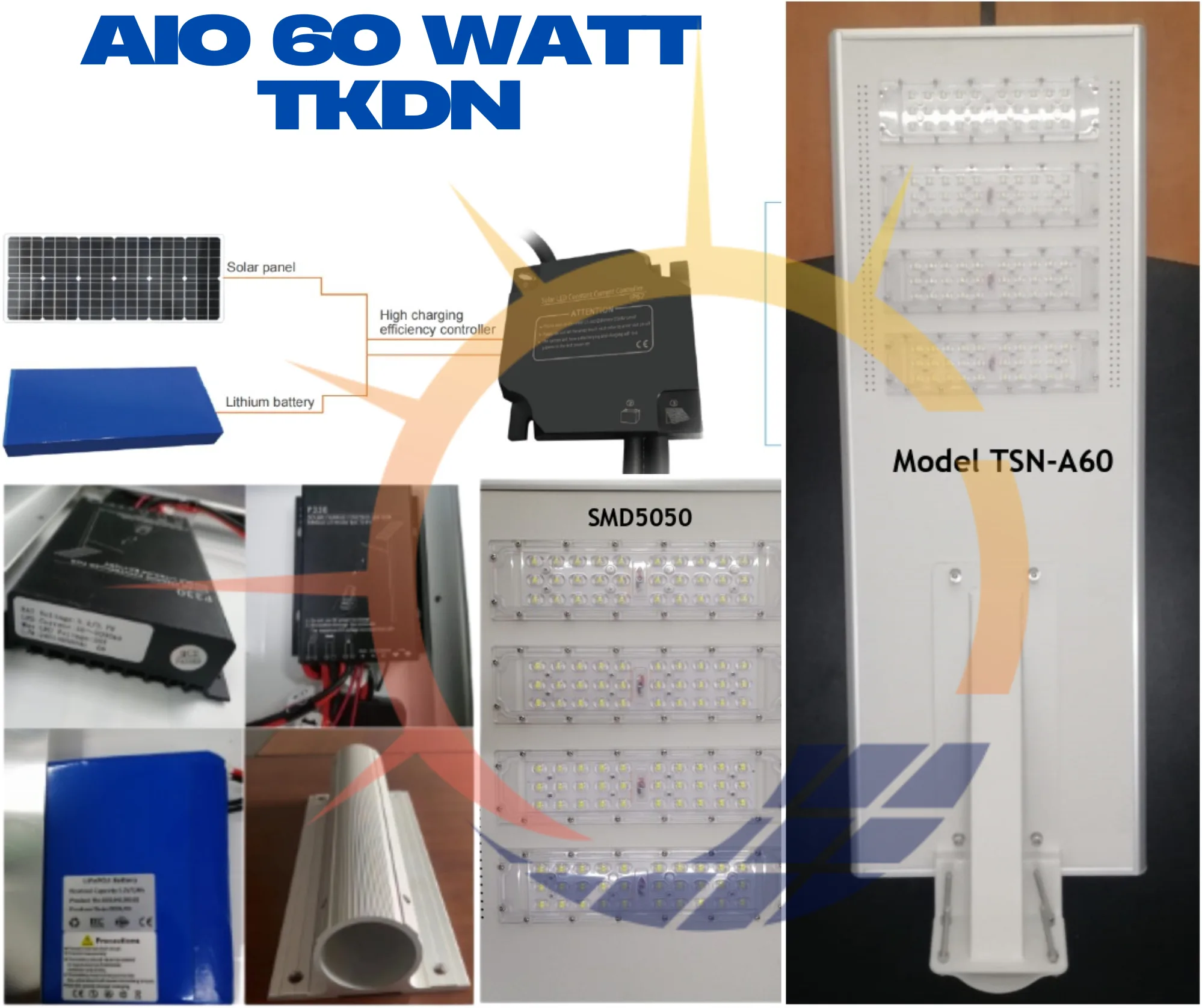

ALL IN ONE (AIO) 60 WATT TSN A60 TKDN
Power: 60W
Type CHIPLED: SMD5050
Number of LED: 120 pcs
Number of Modul LED: 4 Modul
Beam Angles: Widebeam
CCT: 5.000 Kelvin
Lumen: 130-150 LM/W
Lifetime Chipled: 50.000 Hours
Solar Panel
Max Power: 70 W
Type Solar Cell: Monocrystalline
Lifetime Solar Cell: 20 Tahun
Lifepo4 Battery
Capacity (Wh): 192 WH (60AH 3.2V)
Lifetime Battery: 2.000 Cycle
Smart Solar Charger
Controller: Smart Controller MPPT 10A with Sensor Solar and Time Dimming Mode
Lamp Material: Aluminum
Charging Time: 6-8 hours of effectively sun light
Working Time: Light 8-12 hours every day
IP Rate: IP65
Warranty: 1.5 years
Garansi 1.5 tahun semua produk
Sudah ada ISO 9001:2015, SNI, TKDN
ALL IN ONE (AIO) 60 WATT 3.2V 100AH TKDN TSN A60 SERIES
Max Power: 60W
Type CHIPLED: SMD5050
Number of LED: 32 Pcs
Number of Modul LED: 4
CCT: 5.700 - 6.500 Kelvin
Lumen: 150 LM/W
Lifetime Chipled: 100.000 Hours
Solar Panel
Max Power: 60W
Type: Monocrystalline
Lifetime Solar CELL: 20 Tahun
Lifepo4 Battery
Capacity (Ah): 100 Ah
Lifetime Battery: 2.000 Cycle
Solar Charger Controller
Controller: Smart Controller MPPT 5A with Sensor Solar and Time Dimming Mode
Lamp Material
Material: ADC12 Aluminum Die-Casting
Charging Time:
6-8 hours of effectively sun light
Working Time:
Light 8-12 hours every day, sustainable 3 rainy days
IP Rate: IP65
Warranty: 2 years
Garansi 2 tahun semua produk
Sudah ada ISO 9001:2015, SNI, TKDN

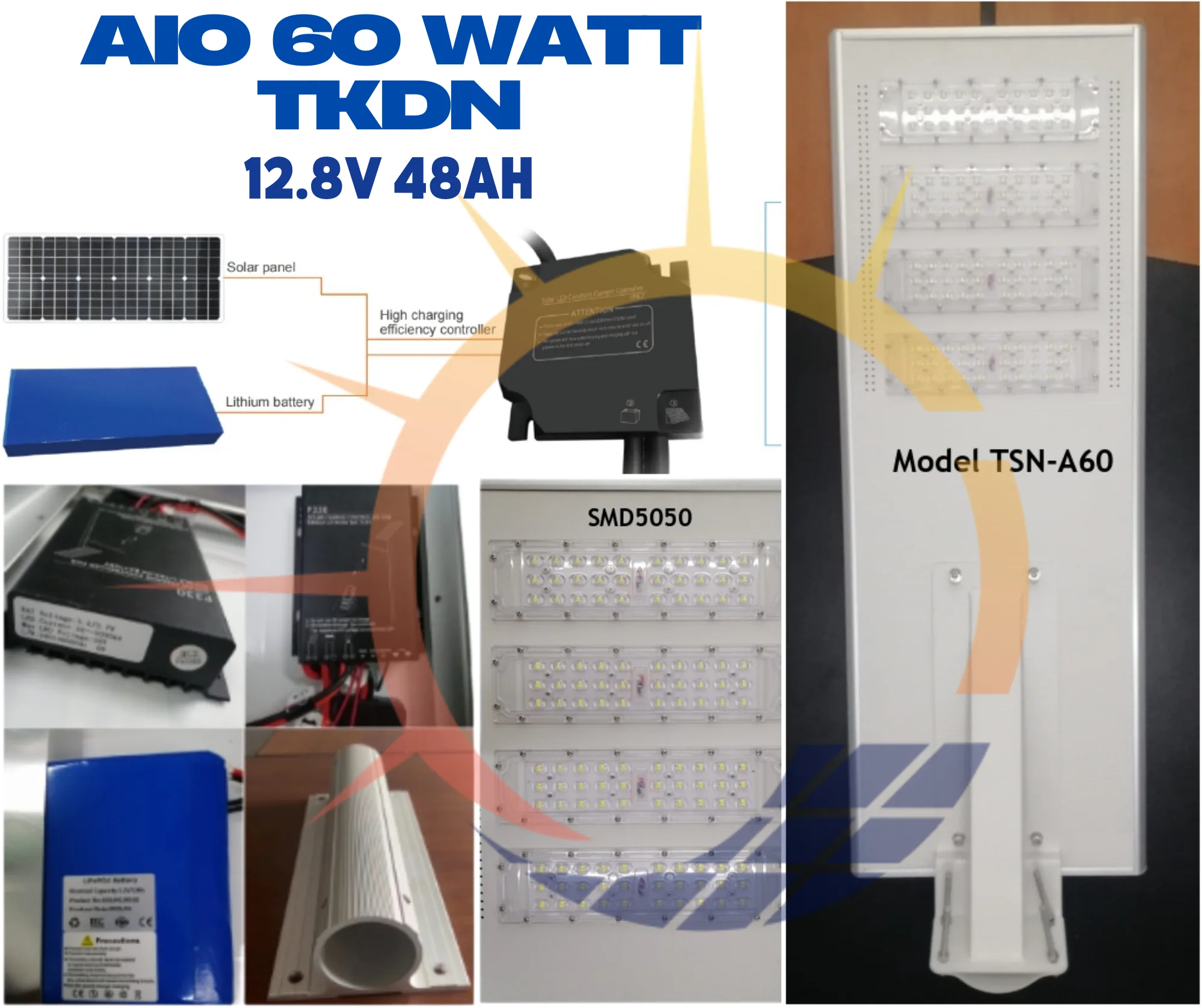

ALL IN ONE (AIO) 60 WATT 12.8 V 48 AH TSN A60 SERIES
Max Power Chip Led: 60W
Tegangan Mata Led: 20-50 Vdc
Brand (Customize): Philips, CREE, OSRAM, Bridgelux
Type LED: SMD3030
Jumlah Led: 120
Jumlah Modul Led: 4
CCT: 6.000 - 7.000 Kelvin
Lumen @ Mata Led: 150-180 LM/W
Umur Mata Led: > 50.000 Jam
Solar Panel
Max Power: 100 W
Tegangan: 18 V
Type: Mono/Poly
Umur Solar Panel: > 20 Tahun
Lifepo4 Battery
Kapasitas (Ah): 48 Ah
Tegangan: 12.8 V
Total Kapasitas (Wh): 614 WH
Umur Baterai: > 2.500 Cycle
Solar Charger Controller
Controller: Smart Controller Kapasitas Minimal 5A, Dengan Fungsi Sensor Solar dan Time Dimming Mode, Output Led 20-50Vdc
Material Lampu: Aluminum
Dimensi Lampu: 100040050 mm
Charging Time: 6-8 hours of effectively sun light
Working Time: Light 8-12 hours every day
IP Rate: IP65
Warranty: 2 years
PJU-TS ALL IN ONE 60W
Model TSN-A60
Garansi 2 tahun semua produk
Sudah ada ISO 9001:2015, SNI, TKDN
